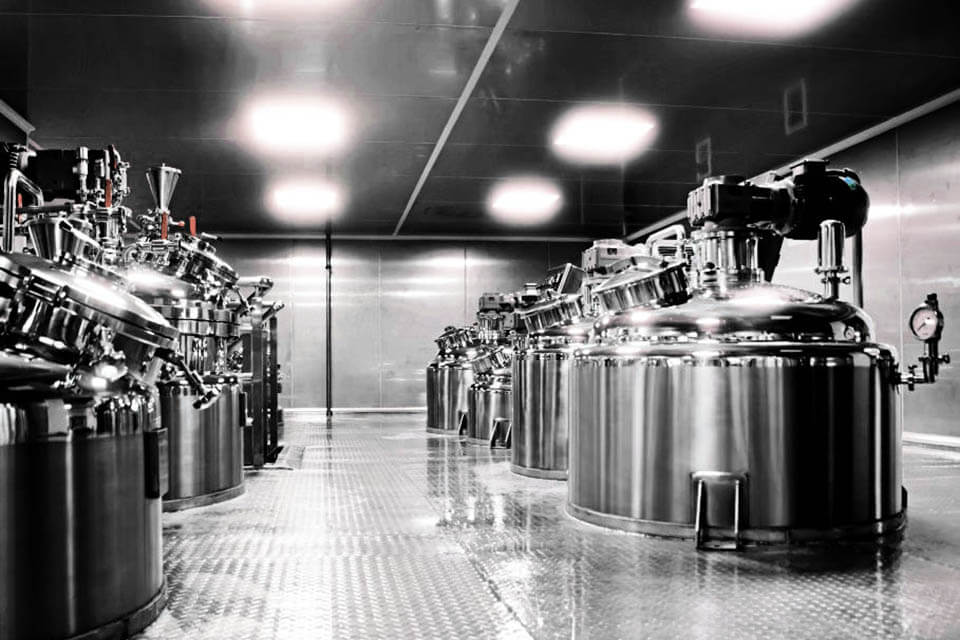

Ointment Manufacturing Plant



The Ointment Manufacturing Plant is an ideal tool for the pharmaceutical & cosmetic industries for the production of Ointment, Cream, Lotions, Tooth Paste & other emulsions & homogenizations.

Ointment Manufacturing Plant

It is specially designed to take care of two critical factors which directly affects the quality of the Ointment / Creams.

  • Minimum man handling of Ointment.

  • Negligible vacuum drop during mixing & blending.

Needless to say, it also provides the benefits of the effective manpower utilization.



J.K.INDUSTRIES Ointment Manufacturing Plant consist the following equipments and accessories.

  • Manufacturing Vessel OR Jacketed Planetory Mixer

  • Wax Phase Vessel

  • Water Phase Vessel

  • Storage Vessel

  • Vacuum Pump

  • Control Panel

  • Product Piping

  • Working Platform

  • Material Transfer Pump to Transfer material from manufacturing Vessel OR Planetory Mixer to Storage Vessel & Storage Vessel to Ointment (Tube) Filling M/C. ( 02 nos.)



Ointment Manufacturing Plant 2

  • This system consist of a closed circuit manufacturing facility from feeding of Wax / Water Phase to loading the hopper of filling machine.

  • The Wax and Water at required temperature are transferred to Manufacturing Vessel or Planetory Mixer, by vacuum through conical filter.

  • The product during emulsion formation is recirculated through Ointment Transfer Pump The Pump also discharges the product in the Storage Vessel.

  • The Storage Vessel is then taken to the filling area and is connected to again Ointment Transfer Pump. Or Storage Vessel remain fixed ( In bigger size ) & pump transfer the ointments in the hopper of the Ointment Filling Machine.

  • The entire Ointment Manufacturing Plant can be operated by centralised operating panel by one operator.

  • The Ointment Manufacturing Plant is equipped with an electrical control panel with digital temperature indicators and digital timers.

  • Minimum two batches per shift of the same product can be assured in this plant.

  • This plant conforms to CGMP standards (Paint Free Construction).

  • Encosed are a few pages explaining the system in detail. In case of any queries feel free to contact us.

SALIENT FEATURES :

  • The Ointment Manufacturing Plant is designed to be operated only by one operator and one helper.

  • All material transfers are done by vacuum or by transfer pumps.

  • All the vessels are CGMP (paint free construction)

  • The gaskets used in this Ointment Manufacturing Plant are of silicon (food grade).

  • All contact parts are of S.S. 304 quality material (SS316 provided on demand) & finished to class 4B (Mirror) finish and are crevice free.

  • The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier ( as per customer choice ).

  • All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized.

  • All pipes, pipe fittings and valves are of SS304 / SS316 ( as per customer requirement ) seamless quality, internally electro polished, with tri-clover ended joints.

  • The entire Ointment Manufacturing Plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.

  • All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters.

  • A micro processor based automatic operating plant can be designed as per requirement.

  • All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.
